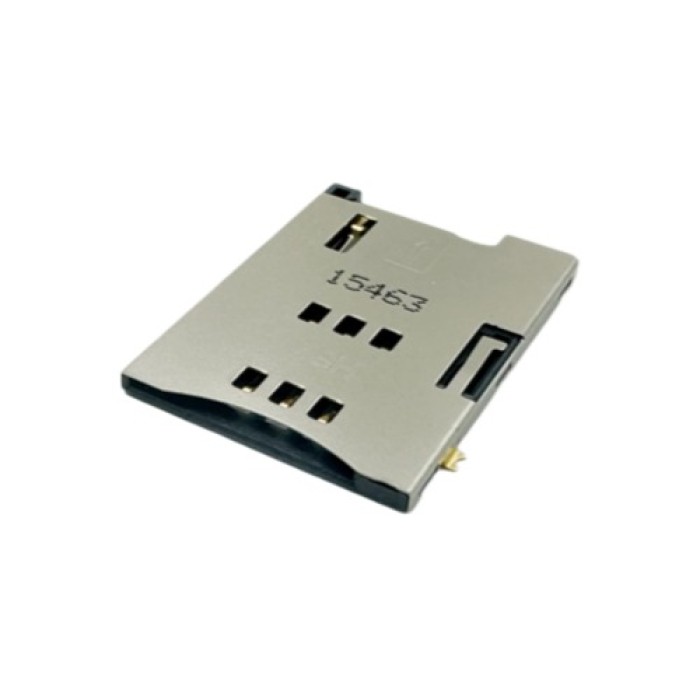

SIM Card Connector Push-PushTop Mount Height 1.80mm
SIM Card Connector Push-PushTop Mount Height 1.80mm



Detail Information
Learn about Height 1.80mm Mini SIM Card Connector

Mini SIM(Subscriber Identity Module) Card Connector
1.27mm Pitch Mini SIM Card Connector, Top Mount SMT Type, Push-Push structure, 1.80mm Height
Advantage:
1. Easily Push-Push Mini SIM card injection,Users can use it easily by pushing the Mini SIM card to insert and push it out.
2. Reliable Detection Switch, Supports hot plug function
3. Ultra-thin Design, Offers more interior space savings for customers' products.
4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted."
5. Card polarization feature, Unique card socket design prevents improper card insertion.
Understand the Parameters of the Height 1.80mm Mini SIM Card Connector
Technical Parameters
|
||
Rating Current:
|
0.5A
|
|
Rating Voltage:
|
5.0 vrms
|
|
Contact Resistance:
|
100mΩ
|
|
Insulation Resistance:
|
500mΩ
|
|
Useful Life: | 5000 Cycles |
Additional Parameters
|
||
Transmission Rate:
|
N/A
|
|
Number of pins:
|
6
|
|
Number of interfaces:
|
1
|
|
Features:
|
Superb card locking function
|
|
Used for: | Tablet,Laptop,Smart Wearable,Smart Home,Automotive,Mobile Communication |
Download
Detail Drawing of Height 1.80mm Mini SIM Card Connector
