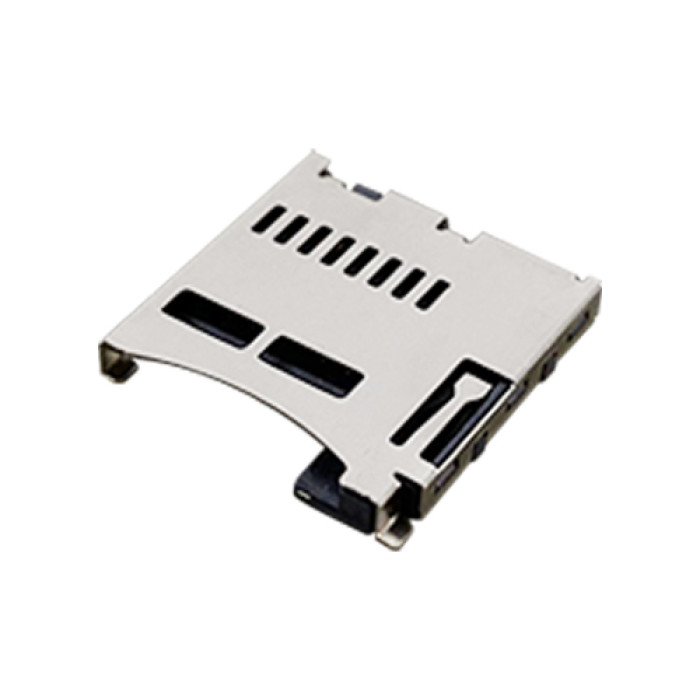

Micro SD Memory Card Connector Push-Push Top Mount Height 1.95mm
Micro SD Memory Card Connector Push-Push Top Mount Height 1.95mm
Detail Information
Learn about Height 1.95mm Micro SD Card Connector
Micro SD Memory Card Connector
1.10mm pitch Micro SD Memory Card Connector,Top Mount Type, Push-Push structure,1.95mm Height
Advantage：
1. Easily push-push Micros SD card injection， Users can use it easily by pushing the micro SD card to insert and pull out it.
2. Reliable Detection Switch, Supports hot plug function
3. Ultra-thin Design, Offers more interior space savings for customers' products.
4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted."
5. Card polarization feature, Unique card socket design prevents improper card insertion.
Understand the Parameters of the Height 1.67mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500V DC
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 10000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
300 Mb/s
|
|
|
Number of pins:
|
9
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |
Download
Detail Drawing of Height 1.95mm Micro SD Card Connector
