Categories	Mini SIM Card Connector
Brand	Moarconn Card Connector Manufacturer
Model	SIM Card Connector（SM185-T1250-02-W）
Product Height	1.85mm
Usable Memory Card	SIM card
Base Material	LCP
Terminals Material	Phosphorous Bronze
Terms of Payment	L/C, D/A, D/P, Western Union
Download
Update Time	Apr 3,2025

Detail Information

Learn about Height 1.85mm Mini SIM Card Connector

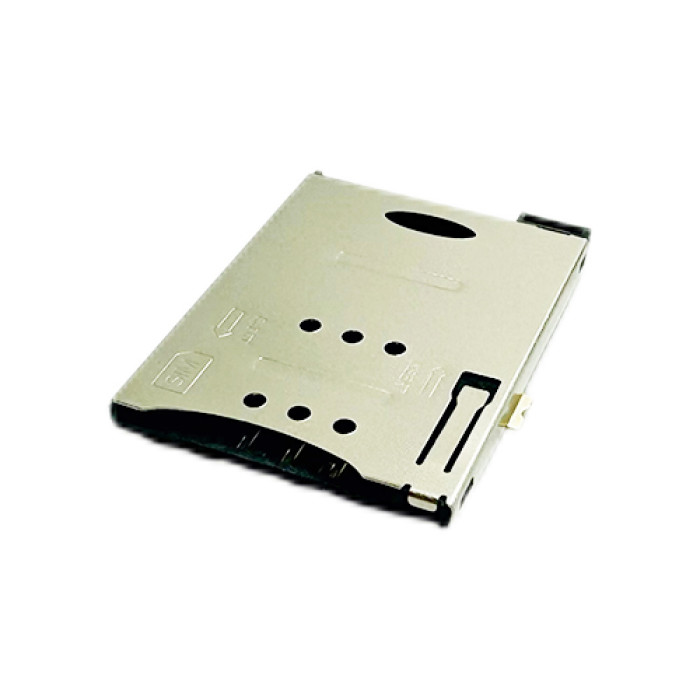

Mini SIM(Subscriber Identity Module) Card Connector

1.27mm Pitch Mini SIM Card Connector, Top Mount SMT Type, wtih push-push structure, 1.85mm Height

Advantage：

1. Easily push-push Mini SIM card injection,Users can use it easily by pushing the Mini SIM card to insert and push it out.

2. Reliable Detection Switch, Supports hot plug function

3. Ultra-thin Design, Offers more interior space savings for customers' products.

4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted."

5. Card polarization feature, Unique card socket design prevents improper card insertion.

Understand the Parameters of the Height 1.85mm Mini SIM Card Connector

Additional Parameters
Transmission Rate:	N/A
Number of pins:	8
Number of interfaces:	1
Features:	Superb card locking function
Used for:	Tablet,Laptop,Smart Wearable,Smart Home,Automotive,Mobile Communication
