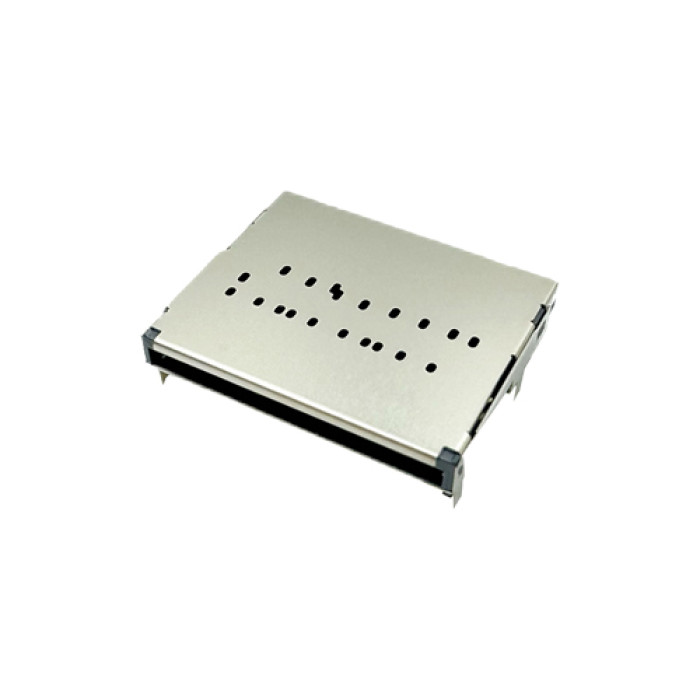

SD7.0 Card Socket Connector Push-Pull Type Bottom Mount Height 5.87mm
SD7.0 Card Socket Connector Push-Pull Type Bottom Mount Height 5.87mm
Detail Information
Learn about Height 5.87mm SD 7.0 Card Connector
Secure Digital (SD) 7.0 Memory Card Connector
1.05mm Pitch SD 7.0 Memory Card Connector, Bottom Mount SMT Type, Push-Pull structure, 5.87mm Height
Advantage：
1. Strict coplanarity control ensures good reflow reliability.
2. Simple design, no automatic ejection mechanism, with price advantage.
3.Thin and light weight, small size, optimized PCB space, Saving internal space for customers.
4.Reliable detect switch,assures card detection.
Understand the Parameters of the Height 5.87mm SD 7.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
985 Mb/s
|
|
|
Number of pins:
|
21
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Download
Detail Drawing of Height 5.87mm SD 7.0 Card Connector
