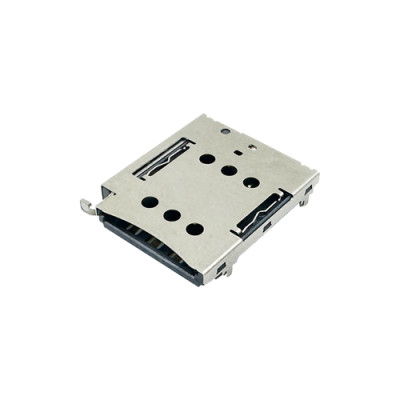

Nano SIM Card Connector Hinge Type Height 1.43mm

Nano SIM Card Connector Hinge Type Height 1.43mm

Nano SIM Card Connector Hinge Type Height 1.43mm
Nano SIM Card Connector Hinge Type Height 1.43mmNano SIM Card Connector Hinge Type Height 1.43mm
CategoriesNano SIM Card Connector
BrandMoarconn Card Connector Manufacturer
ModelNano SIM Card Connector(NS143-T1151-01)
Product Height1.43mm
Usable Memory CardNano sim card
Base MaterialLCP
Terminals MaterialPhosphorous Bronze
Shell MaterialStainless Steel
Terms of PaymentL/C, D/A, D/P, Western Union
Download
Update TimeApr 4,2025
Detail Information
Learn about Height 1.43mm Nano SIM Card Connector
Nano SIM card connector
Nano SIM Card Connector

0.90mm Pitch Nano SIM Card Connector, Top Mount SMT Type, with Hinge structure, 1.43mm Height

Advantage:
1. The card tray can stably fix the Nano SIM card in the card holder, preventing the Nano SIM card from falling off due to vibration or shock, ensuring the stable operation of the device.
2. Nano SIM card holder with card tray is usually equipped with fool-proofing design, it can only work properly when the Nano SIM card is inserted correctly, preventing the device from being damaged or data loss due to misuse.

3. The design of the card tray can effectively prevent dust and dirt from entering the interior of the card holder, keep the Nano SIM card clean and dry, and reduce problems such as poor contact due to dust accumulation.


Understand the Parameters of the Height 1.43mm Nano SIM Card Connector
Technical Parameters
Rating Current:
0.5 A
Rating Voltage:
500 V
Contact Resistance:
100 mΩ
Insulation Resistance:
1000 MΩ
Useful Life:
5000 cycles
Additional Parameters
Transmission Rate:
N/A
Number of pins:
7
Number of interfaces:
1
Features:
Smart/Ultrathin
Used for:
Tablet PC,Laptop PC,Smart Home,Smart Car,Mobile Communication
Download
2D Drawing PDF

Data Sheet

Detail Drawing of Height 1.43mm Nano SIM Card Connector
