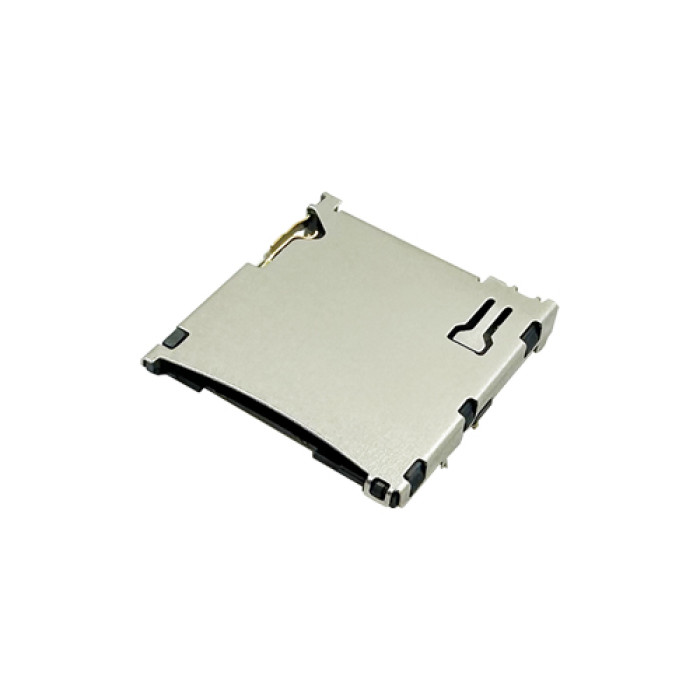

Micro SD Card Connector -Micro SD Memory Card Connector Push-Push DIP 1.45mm Type Height 2.10mm Support Customization.
Micro SD Card Connector -Micro SD Memory Card Connector Push-Push DIP 1.45mm Type Height 2.10mm Support Customization.
Detail Information
Learn about Height 2.10mm Micro SD Card Connector
Micro SD Memory Card Connector
0.90mm pitch Micro SD Memory Card Connector,Top Mount Sink 1.45mm Type, Push-Push structure,2.10mm Height
Advantage：
1. Easily push-push Micros SD card injection， Users can use it easily by pushing the micro SD card to insert and pull out it.
2. Reliable Detection Switch, Supports hot plug function
3. Ultra-thin Design, Offers more interior space savings for customers' products.
4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted."
5. Card polarization feature, Unique card socket design prevents improper card insertion.
Understand the Parameters of the Height 2.10mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
9
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |
Download
Detail Drawing of Height 2.10mm Micro SD Card Connector
Application of Height 2.10mm Micro SD Card Connector
Security&Monitoring
Smart Home
Drive Recorder
Instructions for Use of Height 2.10mm Micro SD Card Connector
- Step 1:Insertion Micro SD card
- Locate the Micro SD card connector: The Micro SD card holder is usually located on the side of the device, usually with a small cover or exposed slot.
- Insertion the Micro SD card: Make sure the gold fingers of the Micro SD card is facing down and aligned with the slot of the card holder, gently insert the Micro SD card into the card holder.
- Fixed Micro SD card: Once the Micro SD card is inserted, the card will protrude slightly and be in a fixed position. The card should not protrude from the surface of the device.
- Step 2:Taking out the Micro SD card
- Before removing the Micro SD card, make sure the device has stopped using the card. On most devices, you can safely unmount the card from the operating system to avoid data loss or corruption.
- Press the edge of the Micro SD card and it will automatically exit so you can safely remove it.
