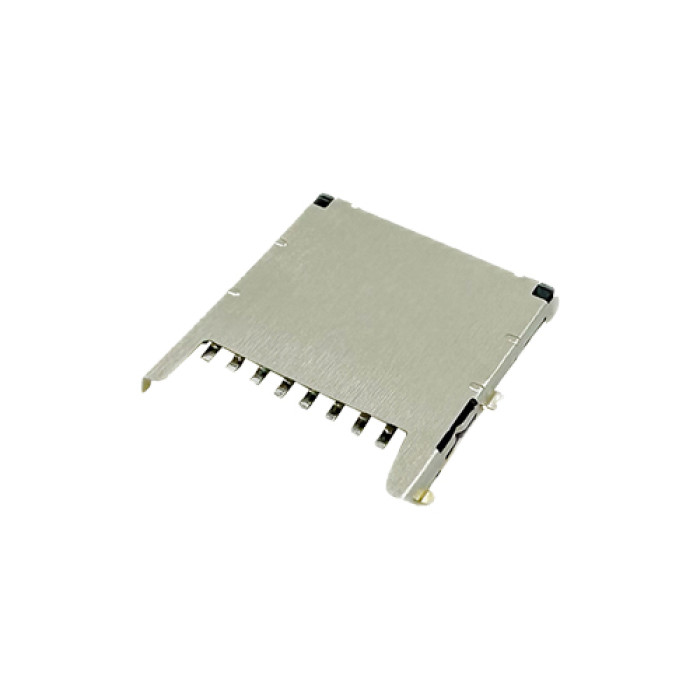

Micro SD Card Connector Push-Push Top Mount Height 1.15mm
Micro SD Card Connector Push-Push Top Mount Height 1.15mm
| Categories | Micro SD 3.0 card connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | Micro SD Card Connector（TF115-T1251-01） |
| Product Height | 1.15mm |
| Usable Memory Card | Micro SD 3.0 memory card / TF memory card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | Apr 25,2025 |
Detail Information
Learn about Height 1.15mm Micro SD Card Connector
Micro SD Memory Card Connector
1.10mm pitch Micro SD Memory Card Connector,Top Mount SMT 1.45mm Type, Push-Push structure,1.15mm Height
Advantage：
1. Easily push-push Micros SD card injection， Users can use it easily by pushing the micro SD card to insert and pull out it.
2. Reliable Detection Switch, Supports hot plug function
3. Ultra-thin Design, Offers more interior space savings for customers' products.
4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted."
5. Card polarization feature, Unique card socket design prevents improper card insertion.
Understand the Parameters of the Height 1.150mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |
Download
Detail Drawing of Height 1.15mm Micro SD Card Connector
