Categories	SD 4.0 Card Connector
Brand	Moarconn Card Connector Manufacturer
Model	SD 4.0 Card Connector（SD313-T1251-01）
Product Height	3.13mm
Usable Memory Card	SD 4.0/SD 3.0memory card
Base Material	LCP
Terminals Material	Phosphorous Bronze
Shell Material	Stainless Steel
Terms of Payment	L/C, D/A, D/P, Western Union
Download
Update Time	Mar 12,2025

Detail Information

Learn about Height 3.13mm SD 4.0 Card Connector

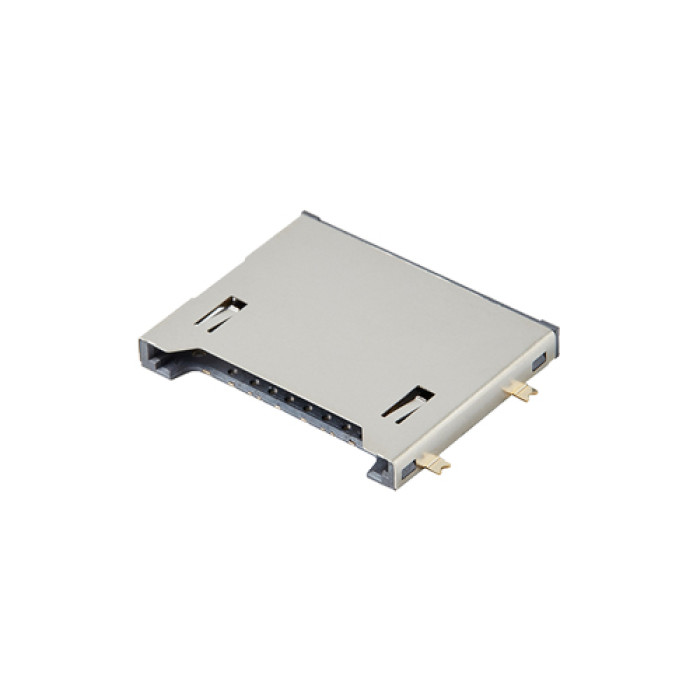

Secure Digital (SD) 4.0 Memory Card Connector

1.05mm Pitch SD 4.0 Memory Card Connector, Top Mount SMT Type, Push-Pull structure, 3.13mm Height

Advantage：
1. Strict coplanarity control ensures good reflow reliability.

2. Simple design, no automatic ejection mechanism, with price advantage.

3.Thin and light weight, small size, optimized PCB space, Saving internal space for customers.

4.Reliable detect switch,assures card detection.

Understand the Parameters of the Height 3.13mm SD 4.0 Card Connector

Additional Parameters
Transmission Rate:	300 Mb/s
Number of pins:	19
Number of interfaces:	1
Features:	High Transmission
Used for:	Computer/Card reader/Docking Station/Laptop/Digital Cameras
