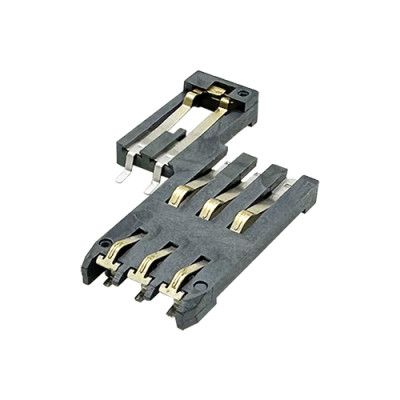

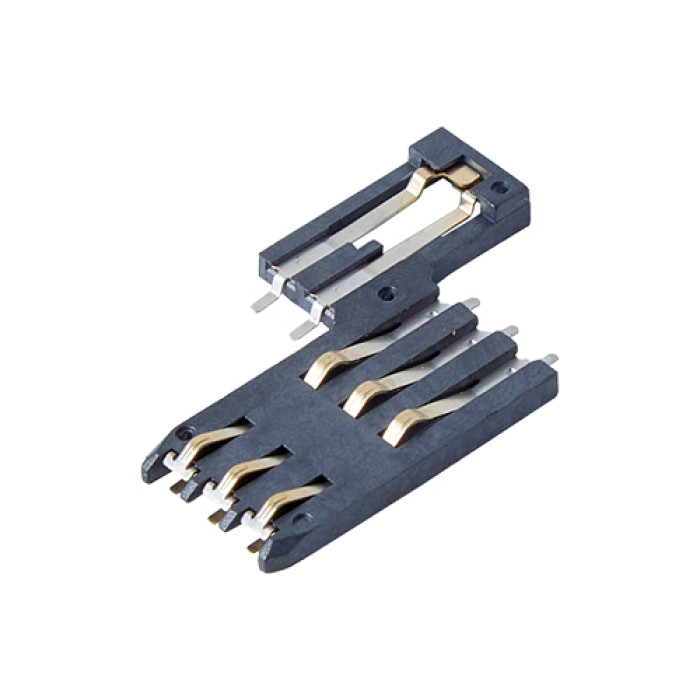

Smart Card Connector 6pin with 2 switches Height 1.45mm
| Categories | Smart Card Connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | Smart Card Connector（SM145-T1200-01） |
| Product Height | 1.45mm |
| Usable Memory Card | smart card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | Apr 25,2025 |
Detail Information
Learn about Height 1.45mm Smart Card Connector
Smart Card Socket Connector
2.54mm Pitch Smart Card Connector, Top Mount SMT Type, 6 pins with 2 switches,1.45mm Height
Advantage：
1. Strict coplanarity control ensures good reflow reliability.
2. Simple design, no automatic ejection mechanism, with price advantage.
3. Thin and light weight, small size, optimized PCB space. Saving internal space for customers.
4.Reliable detect switch,Assures card detection.
Understand the Parameters of the Height 1.45mm Smart Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
6
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Hot-swappable
|
|
Used for: | ETC(Electronic Toll Collection),Smart Home,Payment Terminals | |
Download
Detail Drawing of Height 1.45mm Smart Card Connector
