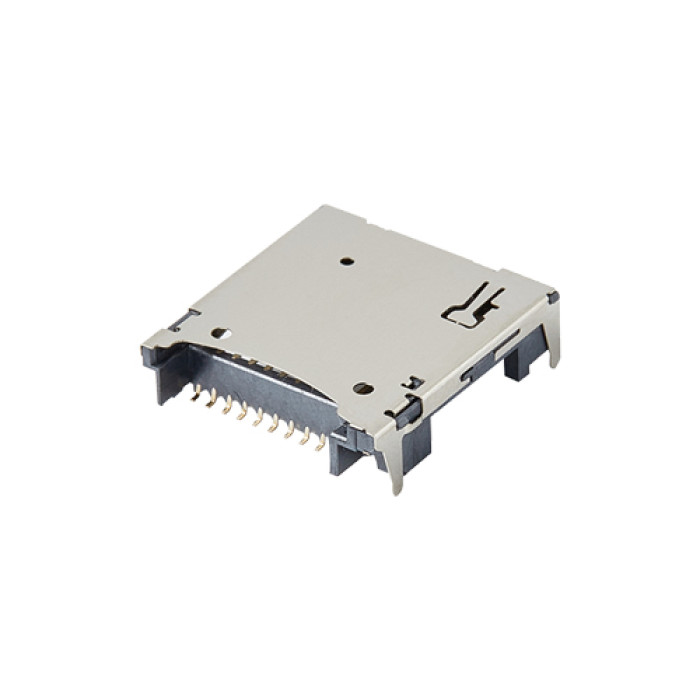

Micro SD Card Connector Push-Push Stand off 1.63mm Height 2.90mm

Micro SD Card Connector Push-Push Stand off 1.63mm Height 2.90mm

Micro SD Card Connector Push-Push Stand off 1.63mm Height 2.90mm
Micro SD Card Connector Push-Push Stand off 1.63mm Height 2.90mmMicro SD Card Connector Push-Push Stand off 1.63mm Height 2.90mm
CategoriesMicro SD 4.0 card connector
BrandMoarconn Card Connector Manufacturer
ModelMicro SD 4.0 Card Connector(MS290-T1150-01)
Product Height2.90mm
Usable Memory CardMicro SD 3.0&4.0 memory card / TF memory card
Base MaterialLCP
Terminals MaterialPhosphorous Bronze
Shell MaterialStainless Steel
Terms of PaymentL/C, D/A, D/P, Western Union
Download
Update TimeApr 4,2025
Detail Information
Learn about Height 2.90mm Micro SD 4.0 Card Connector
Micro SD 4.0 Card Connector
Micro SD 4.0 Memory Card Connector

0.90mm Pitch Micro SD 4.0 Memory Card Connector, Top Mount Stand off 1.63mm SMT Type, Push-Push structure, 2.90mm Height

Advantage:
1. Easily push-push Micros SD 4.0 card injection,users can use it easily by pushing the micro SD 4.0 card to insert and pull out it.
2. Reliable Detection Switch, Supports hot plug function

3. Ultra-thin Design, Offers more interior space savings for customers' products.

4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted.

5. Card polarization feature, Unique card socket design prevents improper card insertion.


Understand the Parameters of the Height 2.90 mm Micro SD 4.0 Card Connector
Technical Parameters
Rating Current:
0.5 A
Rating Voltage:
500 V
Contact Resistance:
100 mΩ
Insulation Resistance:
1000 MΩ
Useful Life:
5000 cycles
Additional Parameters
Transmission Rate:
300 Mb/s
Number of pins:
17
Number of interfaces:
1
Features:
High Rate Transmission
Used for:
Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle/Smart Home/Card reader
Download
2D Drawing PDF

Data Sheet

Detail Drawing of Height 2.90mm Micro SD 4.0 Card Connector
Micro SD socket card connector
micro sd card connector
